Service: MEP Design & Engineering

Jackson Heights, Queens, NYHealth + Wellness

  • Mechanical
  • Electrical
  • Plumbing
  • Fire Sprinkler & Standpipe
  • Energy Compliance (COMcheck)
  • Backflow Applications
  • DOB Filing Sets
Levels, from the cellar to the roof (about 36 ft)
4
Exam rooms, plus X-ray and CT rooms
8
VRF heat pump capacity across 3 outdoor units
38tons
Gas-fired rooftop units (1 × 10-ton)
10tons
Sprinkler and hose demand, calculated against a city hydrant test
380gpm
Drawing sheets in the mechanical, plumbing, sprinkler and energy sets
30

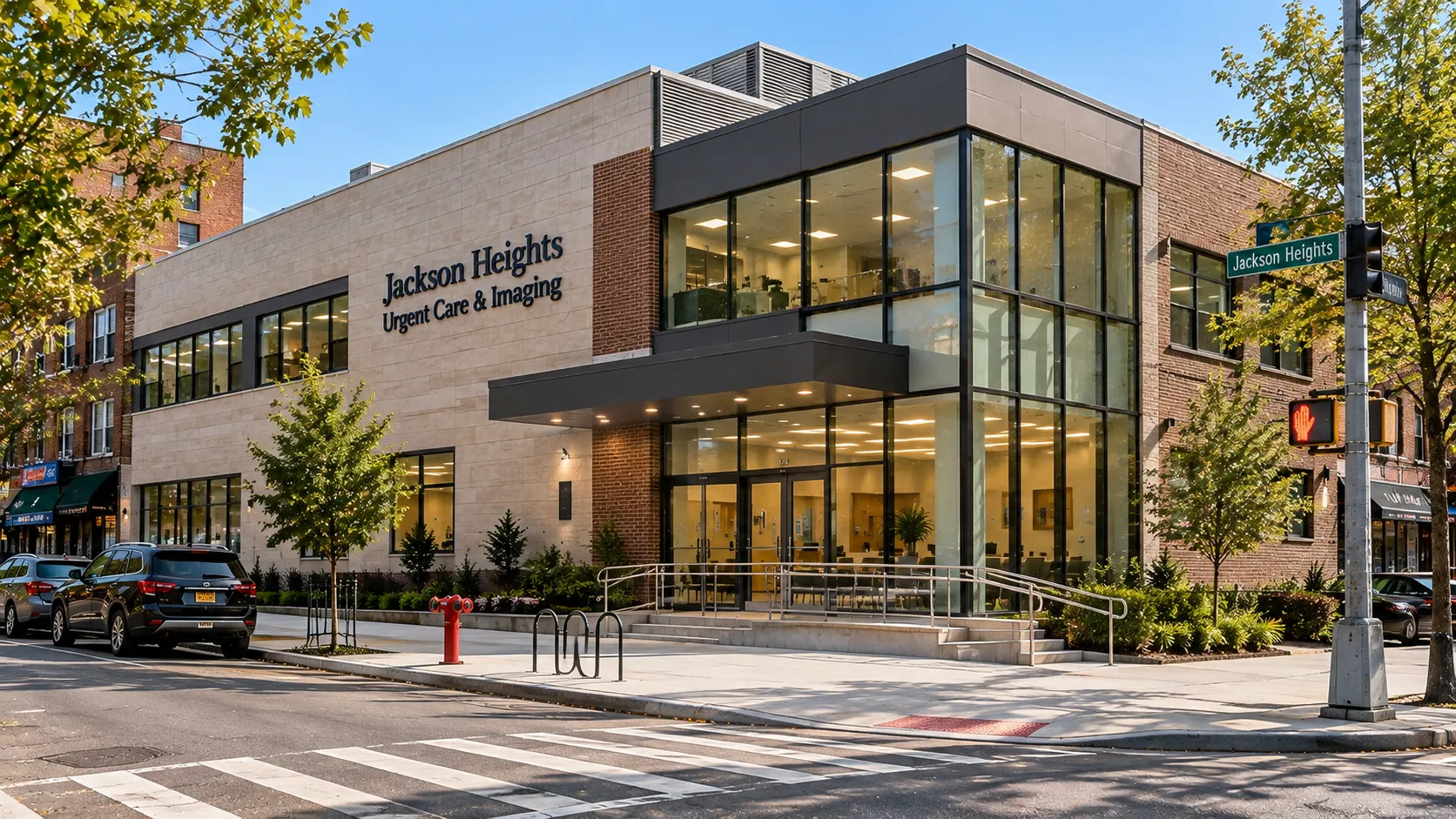

Illustrative image of a new two-storey urgent care and imaging centre on a Queens street corner
Illustrative image

Project information

A small new building on a Queens commercial street: urgent care and consultation on the ground floor, imaging and offices above, and a cellar for storage and mechanical rooms. The CT room needs tight temperature and humidity control and the imaging rooms need ceilings, pipes and ducts coordinated with lead shielding, so the design had to stay compact and clash-free. It was designed to the NYC Construction Codes and the 2020 NYC Energy Conservation Code. Like every New York project, the design also has to satisfy the NYC Construction Codes and the city's energy code requirements.

How We Helped 88-12 ROOSEVELT AVENUE JACKSON HEIGHTS,NY 11372

Mechanical: we scheduled ventilation room by room for about 12,300 ft² of rooms, with the highest outdoor-air rate on first floor. Heating and cooling come from a VRF heat pump system of 3 outdoor units totalling about 38 tons and 31 indoor units, backed by 1 10-ton gas-fired rooftop unit and 1 energy-recovery ventilator. A dedicated 3-ton ducted unit holds the CT room at 72°F, and every duct and pipe penetration through the shielded walls is located and sleeved on the drawings. Electrical: we scheduled the power connection for every rooftop unit, VRF unit, fan, heater and pump — voltage, phase, minimum circuit ampacity and overcurrent protection — and sized the building service for the connected load. Plumbing: City water pressure is enough to serve the building directly, one 80-gallon gas-fired heater supplies hot water with recirculation, and a cellar sump handles floor drainage. Fire protection: a wet sprinkler system on a 4-inch combined sprinkler and standpipe riser fed directly from the city main, hydraulically calculated at about 380 gpm against the city hydrant test. We also prepared the COMcheck energy analysis, the backflow prevention applications and the mechanical, plumbing and sprinkler sets for filing.

The brief

What the project needed, and how we answered

  1. 01

    Keep the CT room cool and stable, and coordinate pipes and ducts with the lead shielding.

    A dedicated 3-ton ducted unit holds the CT room at 72°F, and every duct and pipe penetration through the shielded walls is located and sleeved on the drawings.

  2. 02

    Heat and cool every room of the urgent care and imaging centre with its own comfort setting.

    A VRF heat pump system of 3 outdoor units (10, 12, 16 tons) serves 31 indoor units, so every exam room, treatment bay and office is controlled on its own.

  3. 03

    Bring in enough fresh air for a building with little roof space.

    1 10-ton gas-fired rooftop unit with reheat and economizers, plus 1 energy-recovery ventilator, deliver about 2,060 cfm of outdoor air across the scheduled rooms.

  4. 04

    Get water in and waste out reliably.

    City water pressure is enough to serve the building directly, one 80-gallon gas-fired heater supplies hot water with recirculation, and a cellar sump handles floor drainage.

  5. 05

    Power every unit, pump and heater safely, with a service sized for the load.

    Each piece of equipment was scheduled with its voltage, phase and circuit ampacity, from 1 rooftop unit and 3 VRF outdoor units at 460 V, 3-phase down to 120 V unit heaters, and the building service was sized to the total.

  6. 06

    Protect the building in a fire.

    A wet sprinkler system on a 4-inch combined sprinkler and standpipe riser and street connections for the fire department.

  7. 07

    Clear the approvals that gate construction.

    We prepared the COMcheck energy analysis, the backflow prevention applications, the hydraulic calculations and the mechanical, plumbing and sprinkler sets for filing.

System by system

What we designed, with the numbers

An air-cooled VRF system: 3 outdoor heat pump units feed 31 ducted and ceiling-type indoor units, each with its own thermostat and condensate pump.

Outdoor units
3 units: 10, 12, 16 tons — 38 tons nominal
Cooling capacity
About 456,000 Btu/h in all
Indoor units
31 units, 0.5 to 3 tons
Refrigerant
R-410A, with long-line sets where piping exceeds standard lengths
Electrical
460 V, 3-phase outdoor units; 208–230 V, 1-phase indoor units
Controls
Low-ambient operation, compressor cycle protection, MERV 8 filters on returns

Building cross-section

Inside the building, level by level

Select a level to see what we designed on it. Elevations are the project datum shown on the riser diagrams; street 97.00.

118.00Roof108.00Second floor98.00First floor86.00CellarSTREET 97.00

Drawn to scale from the floor-to-floor heights · numbers are elevations in feet

EL 108.00 ft

Second floor

X-ray, CT, a reading room and offices.

Rooms scheduled
4,600 ft²
Outdoor air
760 cfm
Indoor units
About 12
  • Mechanical

    Dedicated CT-room cooling, VRF for the X-ray room and offices, and exhaust for the shielded rooms.

  • Fire protection

    Sprinklers on a water-flow-supervised branch and a standpipe hose valve.

  • Electrical

    Single-phase connections for each VRF indoor unit, plus electric unit heaters and restroom heaters on this level.

Deliverables

What we issued

The filing sets and the calculations behind them.

  • 12sheets

    Mechanical

    Plans for every level, air-flow and refrigerant risers, details and equipment schedules

  • 9sheets

    Plumbing

    Plans, sanitary, gas and storm risers, details and schedules

  • 5sheets

    Sprinkler & standpipe

    Plans for all levels, specifications, details and the riser diagram

  • 4sheets

    Energy analysis

    COMcheck mechanical and plumbing compliance, certificates and inspection checklists

  • 11pages

    Hydraulic calculations

    Node and pipe data, supply curve and demand for the sprinkler design

  • 2sheets

    Backflow applications

    Fire and domestic service plans and application forms

Engineering data

Where the building's air goes

We scheduled outdoor air and exhaust for every room. The bars show how those flows are shared between the levels, and why first floor leads.

Outdoor air supplied

2,060 cfm in total

Design flow to rooms, by level

  • First floor43%
  • Second floor (imaging)37%
  • Cellar20%

Share of 2,060 cfm

Air exhausted

900 cfm in total

Design flow from rooms, by level

  • First floor38%
  • Second floor (imaging)33%
  • Cellar29%

Share of 900 cfm

Rooms scheduled
12,300 ft²
Outdoor air
2,060 cfm
Exhaust
900 cfm
Indoor units
31

First floor takes 43% of the building's outdoor air, which is why it has the most careful air-flow design.

Fire water

How the city supply covers the sprinklers

We calculated the sprinkler system against a flow test on the city main. At the flow the sprinklers and hose stream demand, the street still delivers more pressure than the system needs, so no fire pump is required.

02550751000100200300400500600700Flow (gpm)Pressure (psi)City supply (flow test)System demand · 380 gpm at 41 psi13 psi of margin58 psi static52 psi at 500 gpm
Supply curve drawn from the two flow-test points on the standard N1.85 scale.
Test
Hydrant flow test on the city main
Static pressure
58 psi
Residual
52 psi at 500 gpm
System demand
380 gpm at 41 psi
Hazard
Light, wet system
Hose allowance
100 gpm

The flow-test curve stays about 13 psi above the system's demand at 380 gpm, so the city supply is enough on its own.
