Industrial Shed, Kikavi

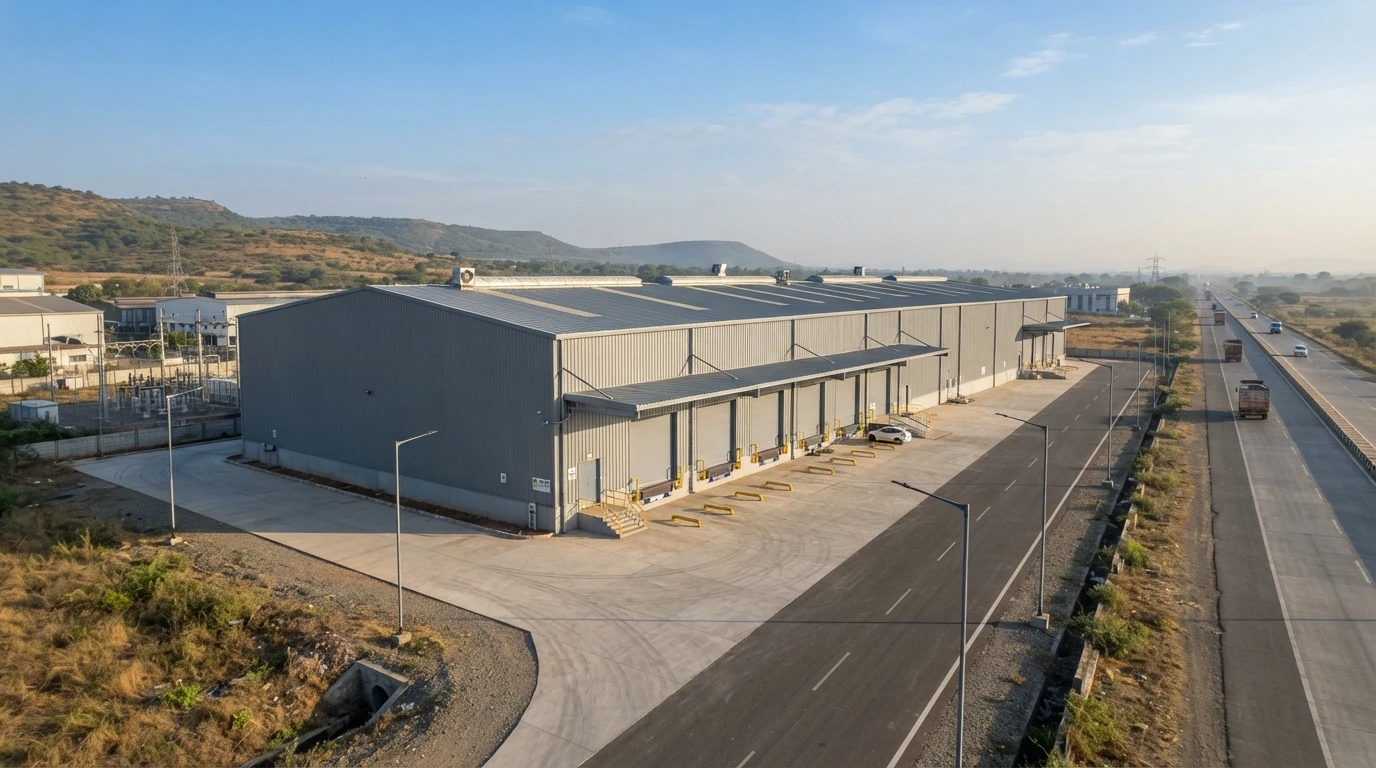

Shed No. 3 of an industrial park being built by Universal India Infrastructure at Kikavi in Bhor taluka, south of Pune, on the service road of the Pune-Satara highway. It is a steel shed with a 6,868 sq m ground floor and an office mezzanine at 5.3 m rated for 500 kg per sq m, on a 1.1 m plinth, with provision for a 5-tonne crane at 7.62 m, a roof truss at 9.6 m with ridge vents, six dock levellers on the loading side, rolling shutters, eight fire exits, and gents' and ladies' toilets. The architecture and structure are by others; our scope is the lighting and power layouts and the plumbing - toilets, rainwater and the storm water and sewage outside, with the bill of quantities.

We issued the lighting and power layouts and the internal plumbing layouts on 26 February 2025, and the external plumbing layout, the pipe sizing and the external plumbing bill of quantities on 2 and 3 March 2025. Lighting: 150 W high bays over the shed floor, 40 W LED battens and IP65 battens, 18 W round surface lights and 40 W street lights on 1 m arms, fed from five lighting boards (LDB-01 to LDB-05) and an emergency board with its own circuits, on 200 x 50 mm and 50 x 50 mm cable trays. Power: 750 x 50 mm cable trays along the shed, with industrial socket outlets - 32 A three-phase on 40 A, 30 mA RCBOs and 16 A single-phase on 25 A RCBOs - beside 6 and 16 A sockets. Plumbing: the gents' and ladies' toilets with 20 to 40 mm water pipes, 110 mm soil, 75 mm waste and 50 mm urinal lines, and the roof drained through 150 mm half-round gutters to 110 mm rainwater pipes. Outside, storm water sized by catchment at a 0.6 runoff coefficient and a 1 in 200 fall - 558 m of RCC pipes from 150 to 450 mm, 23 catch basins, 3 manholes and 396 m of 300 mm masonry channel with gratings for 25-tonne point loads - and the sewage in a 150 mm RCC pipe to two inspection chambers.
