Limestone Oaks Medical Office, Austin

Service: MEP Design & Engineering

Austin, TXHealth + Wellness

  • Mechanical
  • Electrical
  • Plumbing
  • Fire Sprinkler
  • Energy Compliance (COMcheck)
  • Permit Drawing Sets
Levels, from the ground floor to the roof
3
Exam rooms, plus a minor procedure room and X-ray
14
VRF heat pump capacity across 3 outdoor units
30tons
Gas-fired rooftop units (1 × 12-ton)
12tons
Sprinkler and hose demand, calculated against a city hydrant test
350gpm
Drawing sheets in the mechanical, plumbing, sprinkler and energy sets
25

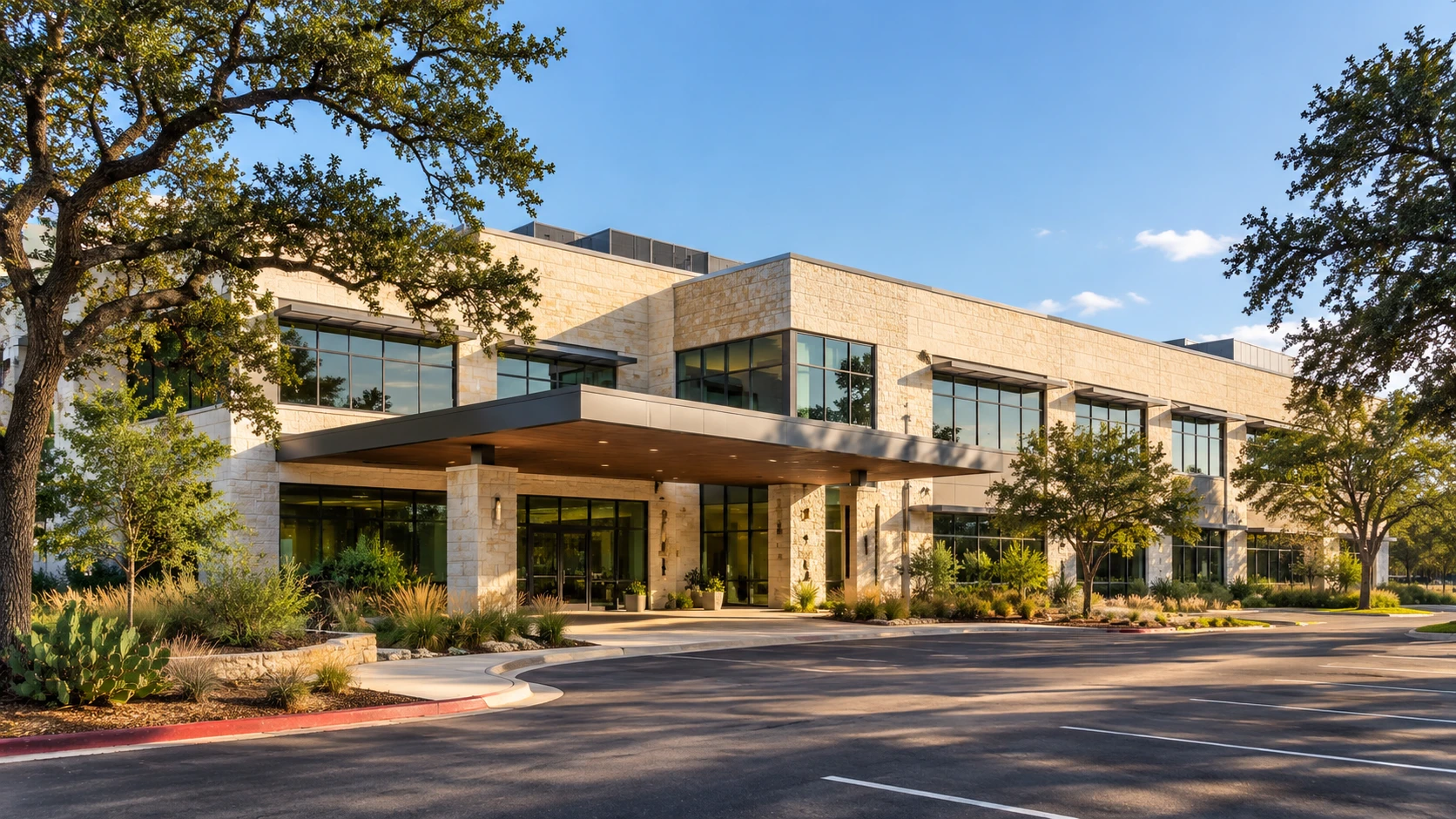

Illustrative image of a two-storey limestone and glass medical office building with a covered entrance, live oak trees and native landscaping beside a parking lot
Illustrative image

Project information

This sample shows how we approach a typical medical office in Austin; its figures are representative, not taken from a real building. A new two-storey building on a suburban site: reception, primary care exam rooms and a lab draw station on the ground floor, and specialist suites, a minor procedure room and X-ray above. Austin's long, hot and humid cooling season drives the design - dry outdoor air, efficient heat pumps and short duct runs in the ceiling space - with energy code compliance documented in COMcheck.

How We Helped Limestone Oaks Medical Office, Austin

Mechanical: we scheduled ventilation room by room for about 16,000 ft² of rooms, with the highest outdoor-air rate on ground floor. Heating and cooling come from a VRF heat pump system of 3 outdoor units totalling about 30 tons and 28 indoor units, backed by 1 12-ton gas-fired rooftop unit and 1 energy-recovery ventilator. The rooftop unit dries all the outdoor air with hot-gas reheat before it reaches the rooms, and the procedure room has its own ducted unit and humidity sensor. Electrical: we scheduled the power connection for every rooftop unit, VRF unit, fan, heater and pump — voltage, phase, minimum circuit ampacity and overcurrent protection — and sized the building service for the connected load. Plumbing: City water pressure serves the building directly, one 80-gallon gas-fired heater supplies hot water with recirculation, and sanitary and storm drainage run by gravity to the city sewers. Fire protection: a wet sprinkler system on a 4-inch sprinkler riser fed directly from the city main, hydraulically calculated at about 350 gpm against the city hydrant test. We also prepared the COMcheck energy analysis, the backflow prevention applications and the mechanical, plumbing and sprinkler sets for filing.

The brief

What the project needed, and how we answered

  1. 01

    Keep the rooms dry and comfortable through a long, humid cooling season.

    The rooftop unit dries all the outdoor air with hot-gas reheat before it reaches the rooms, and the procedure room has its own ducted unit and humidity sensor.

  2. 02

    Heat and cool every room of the medical office building with its own comfort setting.

    A VRF heat pump system of 3 outdoor units (8, 10, 12 tons) serves 28 indoor units, so every exam room, treatment bay and office is controlled on its own.

  3. 03

    Bring in enough fresh air for a building with little roof space.

    1 12-ton gas-fired rooftop unit with reheat and economizers, plus 1 energy-recovery ventilator, deliver about 2,050 cfm of outdoor air across the scheduled rooms.

  4. 04

    Get water in and waste out reliably.

    City water pressure serves the building directly, one 80-gallon gas-fired heater supplies hot water with recirculation, and sanitary and storm drainage run by gravity to the city sewers.

  5. 05

    Power every unit, pump and heater safely, with a service sized for the load.

    Each piece of equipment was scheduled with its voltage, phase and circuit ampacity, from 1 rooftop unit and 3 VRF outdoor units at 460 V, 3-phase down to 120 V unit heaters, and the building service was sized to the total.

  6. 06

    Protect the building in a fire.

    A wet sprinkler system on a 4-inch sprinkler riser and street connections for the fire department.

  7. 07

    Clear the approvals that gate construction.

    We prepared the COMcheck energy analysis, the backflow prevention applications, the hydraulic calculations and the mechanical, plumbing and sprinkler sets for filing.

System by system

What we designed, with the numbers

An air-cooled VRF system: 3 outdoor heat pump units feed 28 ducted and ceiling-type indoor units, each with its own thermostat and condensate pump.

Outdoor units
3 units: 8, 10, 12 tons — 30 tons nominal
Cooling capacity
About 360,000 Btu/h in all
Indoor units
28 units, 0.5 to 3 tons
Refrigerant
R-410A, with long-line sets where piping exceeds standard lengths
Electrical
460 V, 3-phase outdoor units; 208–230 V, 1-phase indoor units
Controls
Low-ambient operation, compressor cycle protection, MERV 8 filters on returns

Building cross-section

Inside the building, level by level

Select a level to see what we designed on it. Elevations are the project datum shown on the riser diagrams; grade 100.00.

128.00Roof114.00Second floor100.00Ground floorGRADE 100.00

Drawn to scale from the floor-to-floor heights · numbers are elevations in feet

EL 100.00 ft

Ground floor

Reception, primary care exam rooms, a lab draw station and staff areas.

Rooms scheduled
8,600 ft²
Outdoor air
1,100 cfm
Indoor units
About 15
  • Mechanical

    VRF indoor units with room-by-room control and dedicated restroom exhaust.

  • Plumbing

    Exam-room hand sinks on thermostatic mixing valves, the water heater and recirculation pump, and the domestic and fire services from the street.

  • Fire protection

    4-inch fire service with a backflow assembly; no fire pump required.

  • Electrical

    Single-phase connections for each VRF indoor unit, plus electric unit heaters and restroom heaters on this level.

Deliverables

What we issued

The filing sets and the calculations behind them.

  • 10sheets

    Mechanical

    Plans for every level, air-flow and refrigerant risers, details and equipment schedules

  • 8sheets

    Plumbing

    Plans, sanitary, gas and storm risers, details and schedules

  • 4sheets

    Sprinkler & standpipe

    Plans for all levels, specifications, details and the riser diagram

  • 3sheets

    Energy analysis

    COMcheck mechanical and plumbing compliance, certificates and inspection checklists

  • 9pages

    Hydraulic calculations

    Node and pipe data, supply curve and demand for the sprinkler design

  • 2sheets

    Backflow applications

    Fire and domestic service plans and application forms

Engineering data

Where the building's air goes

We scheduled outdoor air and exhaust for every room. The bars show how those flows are shared between the levels, and why ground floor leads.

Outdoor air supplied

2,050 cfm in total

Design flow to rooms, by level

  • Ground floor54%
  • Second floor (procedure & imaging)46%

Share of 2,050 cfm

Air exhausted

800 cfm in total

Design flow from rooms, by level

  • Ground floor53%
  • Second floor (procedure & imaging)48%

Share of 800 cfm

Rooms scheduled
16,000 ft²
Outdoor air
2,050 cfm
Exhaust
800 cfm
Indoor units
28

Ground floor takes 54% of the building's outdoor air, which is why it has the most careful air-flow design.

Fire water

How the city supply covers the sprinklers

We calculated the sprinkler system against a flow test on the city main. At the flow the sprinklers and hose stream demand, the street still delivers more pressure than the system needs, so no fire pump is required.

02550751000100200300400500600700Flow (gpm)Pressure (psi)City supply (flow test)System demand · 350 gpm at 45 psi24 psi of margin70 psi static62 psi at 1000 gpm
Supply curve drawn from the two flow-test points on the standard N1.85 scale.
Test
Hydrant flow test on the city main
Static pressure
70 psi
Residual
62 psi at 1000 gpm
System demand
350 gpm at 45 psi
Hazard
Light, wet system
Hose allowance
100 gpm

The flow-test curve stays about 24 psi above the system's demand at 350 gpm, so the city supply is enough on its own.
